3-5/8" Big Bore Cylinder and Piston Kit
S&S CYCLE · Part #0931-0690
$1,995.95
Source: New · Ships to you
In stockacross 2 warehouses
- Inventory and price are checked again before payment.
- Shipping options and any restrictions are shown at checkout.
- Fitment guidance and technical details are documented below.
Product overview
Description

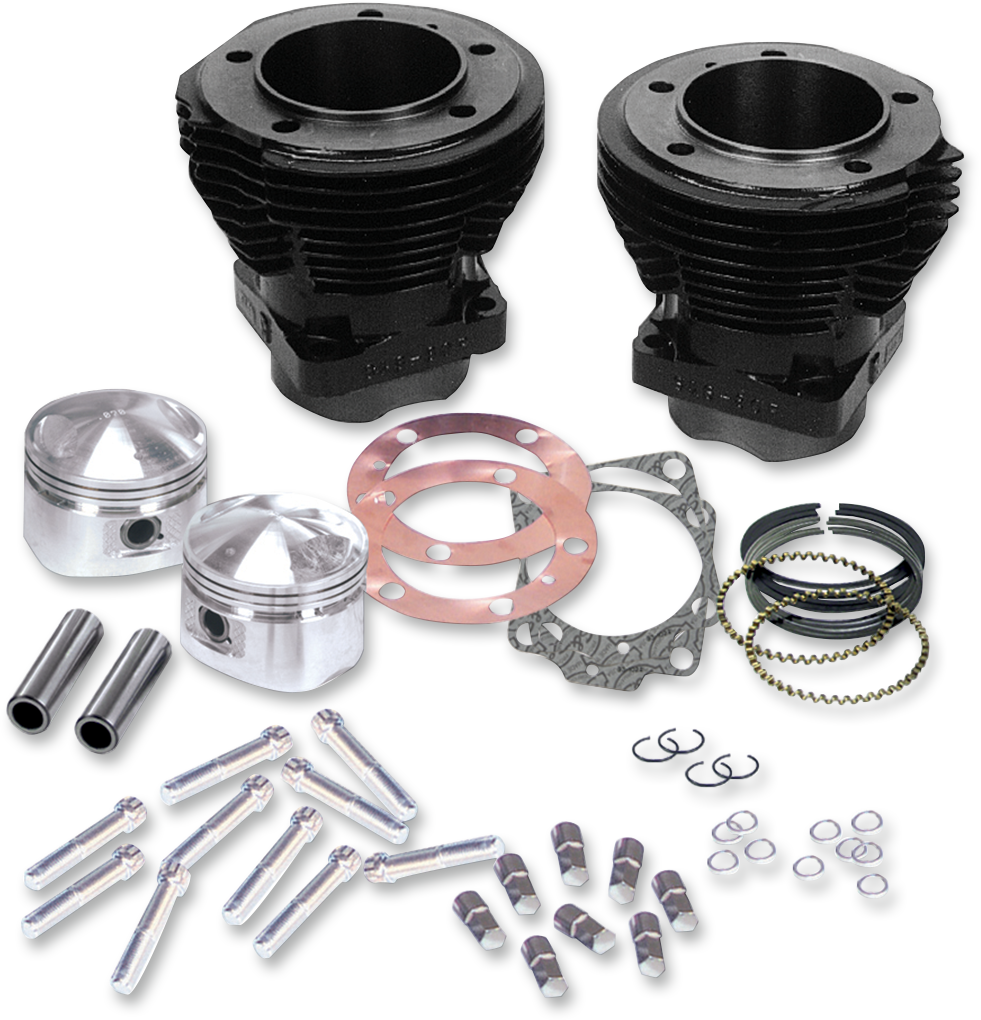

Cylinder and piston kit can be used to build an 88" engine, or to replace the cylinders and piston in an engine with an existing S&S stock bore stroker kit Includes 3-5/8" bore high tensile cast iron cylinders, forged pistons with rings and wristpins, head gaskets, stainless steel head bolts with washers, base nuts and base gaskets 88", 7.5:1 compression Can be used in engines with 4-1/4" flywheels Made in the U.S.A. Crankcases must be bored to accept the larger 3-5/8" cylinders and stock flywheel assembly should be rebalanced.
Fitment
Fit unknownWe don’t have fitment data for this part yet — it may still fit. Check your owner’s manual or ask us.
Technical details
Specifications
- Weight
- 516.8 oz
- Sold as
- kit
- Type
- part
