Catalog part
Flywheel -
S&S CYCLE · Part #0922-0123
$1,695.95
Source: New · Ships to you
In stockacross 3 warehouses
- Inventory and price are checked again before payment.
- Shipping options and any restrictions are shown at checkout.
- Fitment guidance and technical details are documented below.
Product overview
Description

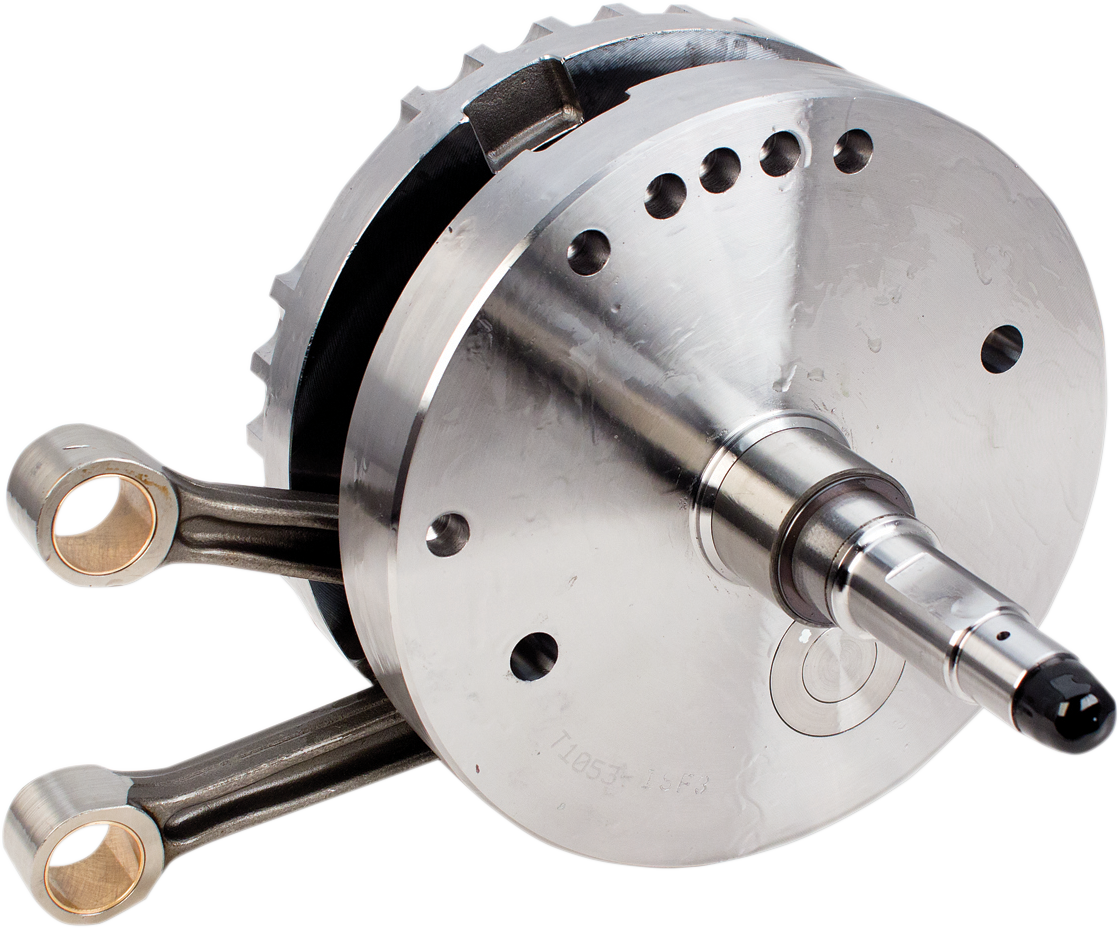

For 96"/103"/106" big bore | 110"/117" engine with stock or S&S pistons (will be noted) Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with full width wrist pin ends, and dynamically balanced Trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels Pinion and sprocket shafts are forged as part of the flywheel Made in the USA
Fitment
Fit unknownWe don’t have fitment data for this part yet — it may still fit. Check your owner’s manual or ask us.
Technical details
Specifications
- Weight
- 627.2 oz
- Sold as
- each
- Type
- part
